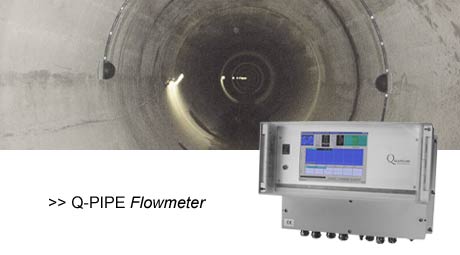

Discharge measurement in pipes   Configurations
Large
  Technical Data pdf
Wireless systems
  Service
Responder systems
Doppler systems
portable systems
RiverSurveyor S5 / M9
FlowTracker
Sewage monitoring
Q-SEWAGE Flowmeter
Q-SEWAGE Controller

Flowmeter system for pipes
+ 4 sensors

  • Path lengths: 0,8 to 10 meters
  • Number of sensors: 4
  • Measurement range: -10 to +10 m/s
  • Accuracy v: < 0,1% in measuring circuit
  • Accuracy Q: < 0,5 %
  • Frequency: 200 kHz
  • Housing: 330 x 235 x 190 (W x H x D), compact housing IP 65
  • Power supply: 12 - 36 VDC
  • Power consumption: 11 VA at continous operation, < 1 VA at standby mode
  • Remote control
