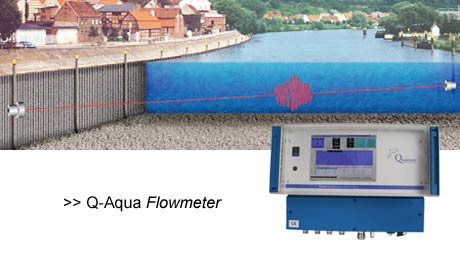

Discharge measurement in large rivers, flowmeter systems
Large
Wireless systems
Responder systems
Doppler systems

portable systems
RiverSurveyor S5 / M9
FlowTracker
Sewage monitoring
Q-SEWAGE Flowmeter
Discharge measurement systems
Printout
Q-SEWAGE Controller

Flowmeter systems for medium distances
+
12 sensors

  • Path lengths: 10 to 200 meters
  • Number of maximal connectable sensors: 12
  • Frequency: 200, 28 kHz
  • Measurement range: -10 to +10 m/s
  • Accuracy v: < 0,1% deviation
  • Accuracy Q: < 3%deviation, better than+/- 1%, if calibrated on site
  • Housing: 19" housing or
    330 x 235 x 190 (W x H x D), compact housing IP 65
  • Remote control
  • Remote data transfer: analog, ISDN, GSM, GPRS
  • Output: optional USB, Bluetooth
  • Expandable: W-LAN adapter, added relais control
  • Power supply: 12 - 36 VDC
  • Power consumption: 11 VA at continous operation, < 1 VA at standby mode
